LA-210 double10Linear array slightly
A/B/C/D Four-gear configuration gradient optional
product introduction
LAThe series of linear array slightly is a high-precision linear array speaker system. It has a large dynamic capacity and can provide clean, continuous and accurate high-quality sound. It applies phase correction and patented linear horn technology to faithfully restore spectrum signals within the specified range;LAThe series of slightly adopts a built-in frequency division method. After rigorous debugging, it can fully and effectively utilize the characteristics of slightly itself. The box is made of high-strength birch plywood, and the surface is sprayed with special materials. The speaker is equipped with a precision aluminum alloy hanging system. The connection angle between the slightly and slightly can be adjusted through lifting parts. The latest ergonomics and mechanical design make the entire system installed quickly and ensure safety.
product features
● High-quality unit configuration, patented linear horn, beautiful sound quality, accurate projection
● Small size and light weight for easy handling and fixed installation
● Convenient and simple hanging method, easy and quick installation
product application
Sports venues, indoor and outdoor performances, theaters, concert halls, performing arts centers, conference centers, multi-purpose halls, lecture halls, auditoriums, theme parks and other places that require high-quality sound reinforcement and loud sound delivery over long distances.

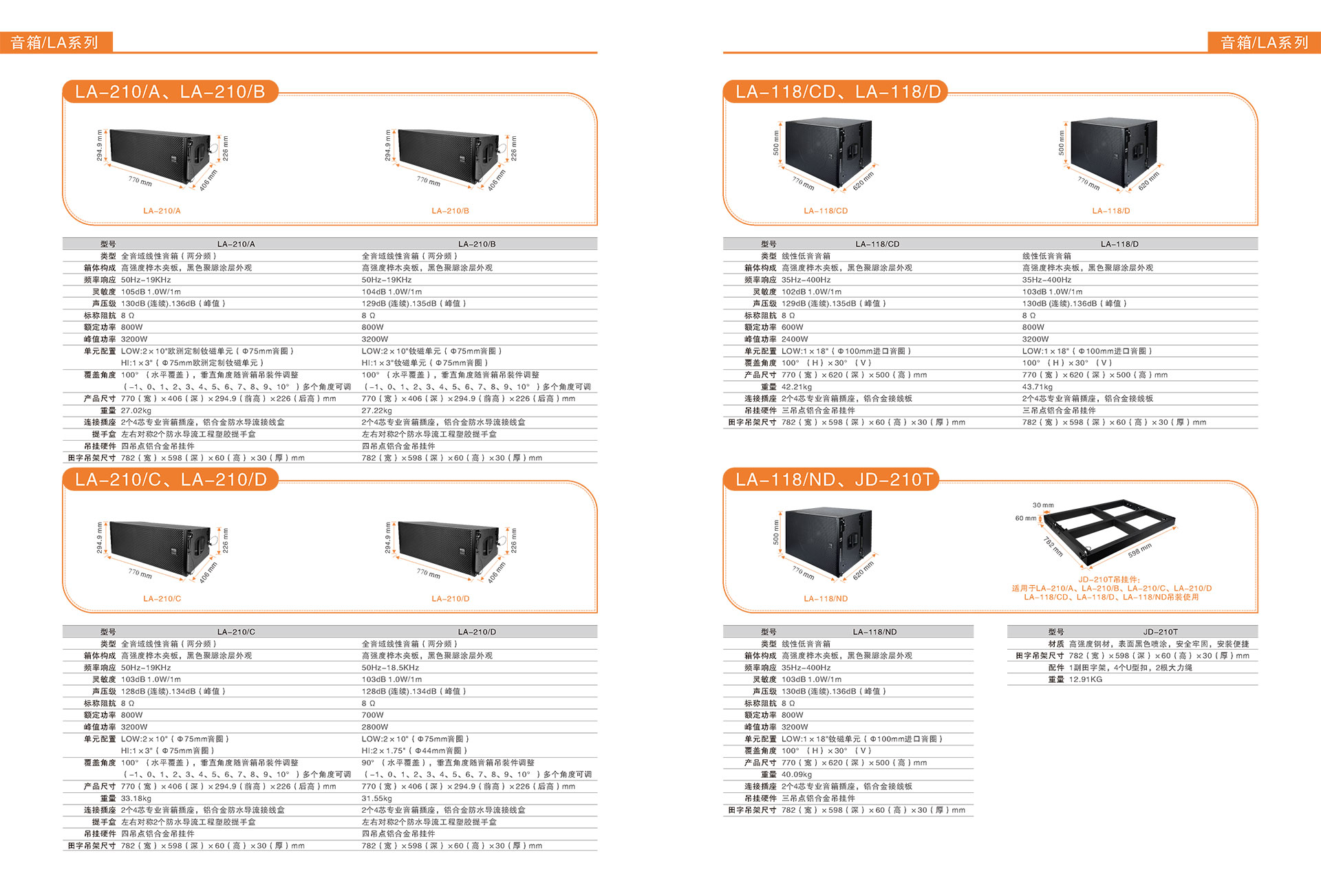

LA-210/A Linear array slightly
Type: Full-range linear slightly (two-frequency)
Box composition: high-strength birch plywood, black polyurea coating appearance
Frequency response:50Hz-19KHz
Sensitivity:105dB 1.0W/1m
Sound pressure level:130dB (continuous).136dB(Peak)
Nominal impedance:8 Ω
Rated power:800W
Peak power:3200W
Unit configuration:LOW:2×10"European custom neodymium magnetic unit (Φ75mmvoice coil)
HI:1×3"（Φ75mmEuropean custom neodymium magnetic unit)
Coverage angle:100°(Horizontal coverage), the vertical angle is adjusted according to the lifting parts of the slightly,(-1、0、1、2、3、4、5、6、7、8、9、10°) Multiple angles adjustable
Product size:770(wide)×406(deep)×294.9former high)×226(Later high)mm
Weight:27.02kg
Connecting socket:2a4Core professional slightly socket, aluminum alloy waterproof diversion junction box
Handle box: symmetrical left and right2Handle box
Hanging hardware: four-point aluminum alloy hanging piece
Tian shaped hanger size:782(wide)×598(deep)×60(high)×30(thick)mm
LA-210/B Linear array slightly
Type: Full-range linear slightly (two-frequency)
Box composition: high-strength birch plywood, black polyurea coating appearance
Frequency response:50Hz-19KHz
Sensitivity:104dB 1.0W/1m
Sound pressure level:129dB (continuous).135dB(Peak)
Nominal impedance:8 Ω
Rated power:800W
Peak power:3200W
Unit configuration:LOW:2×10"Neodymium magnetic unit (Φ75mmvoice coil)
HI:1×3"Neodymium magnetic unit (Φ75mmvoice coil)
Coverage angle:100°(Horizontal coverage), the vertical angle is adjusted according to the lifting parts of the slightly,(-1、0、1、2、3、4、5、6、7、8、9、10°) Multiple angles adjustable
Product size:770(wide)×406(deep)×294.9former high)×226(Later high)mm
Weight:27.22kg
Connecting socket:2a4Core professional slightly socket, aluminum alloy waterproof diversion junction box
Handle box: symmetrical left and right2Handle box
Hanging hardware: four-point aluminum alloy hanging piece
Tian shaped hanger size:782(wide)×598(deep)×60(high)×30(thick)mm
LA-210/C Linear array slightly
Type: Full-range linear slightly (two-frequency)
Box composition: high-strength birch plywood, black polyurea coating appearance
Frequency response:50Hz-19KHz
Sensitivity:103dB 1.0W/1m
Sound pressure level:128dB (continuous).134dB(Peak)
Nominal impedance:8 Ω
Rated power:800W
Peak power:3200W
Unit configuration:LOW:2×10"（Φ75mmvoice coil)
HI:1×3"（Φ75mmvoice coil)
Coverage angle:100°(Horizontal coverage), the vertical angle is adjusted according to the lifting parts of the slightly,(-1、0、1、2、3、4、5、6、7、8、9、10°) Multiple angles adjustable
Product size:770(wide)×406(deep)×294.9former high)×226(Later high)mm
Weight:33.18kg
Connecting socket:2a4Core professional slightly socket, aluminum alloy waterproof diversion junction box
Handle box: symmetrical left and right2Handle box
Hanging hardware: four-point aluminum alloy hanging piece
Tian shaped hanger size:782(wide)×598(deep)×60(high)×30(thick)mm
LA-210/D Linear array slightly
Type: Full-range linear slightly (two-frequency)
Box composition: high-strength birch plywood, black polyurea coating appearance
Frequency response:50Hz-18.5KHz
Sensitivity:103dB 1.0W/1m
Sound pressure level:128dB (continuous).134dB(Peak)
Nominal impedance:8 Ω
Rated power:700W
Peak power:2800W
Unit configuration:LOW:2×10"（Φ75mmvoice coil)
HI:1×3"（Φ75mmvoice coil)
Coverage angle:90°(Horizontal coverage), the vertical angle is adjusted according to the lifting parts of the slightly,(-1、0、1、2、3、4、5、6、7、8、9、10°) Multiple angles adjustable
Product size:770(wide)×406(deep)×294.9former high)×226(Later high)mm
Weight:32.2kg
Connecting socket:2a4Core professional slightly socket, aluminum alloy waterproof diversion junction box
Handle box: symmetrical left and right2Handle box
Hanging hardware: four-point aluminum alloy hanging piece
Tian shaped hanger size:782(wide)×598(deep)×60(high)×30(thick)mm
LA-118/CD Linear array bass slightly
Type: Linear bass slightly
Box composition: high-strength birch plywood, black polyurea coating appearance
Frequency response:35Hz-400Hz
Sensitivity:102dB 1.0W/1m
Sound pressure level:129dB (continuous).135dB(Peak)
Nominal impedance:8 Ω
Rated power:600W
Peak power:2400W
Unit configuration:LOW:1×18"（Φ100mmImported voice coil)
Coverage angle:100°（H）×30°（V）
Product size:770(wide)×620(deep)×500highmm
Weight:42.21kg
Connecting socket:2a4Core professional slightly socket, aluminum alloy wiring board
Handle box: symmetrical left and right2Handle box
Hanging hardware: three-hanging point aluminum alloy hanging piece
Tian shaped hanger size:782(wide)×598(deep)×60(high)×30(thick)mm
LA-118/D Linear array bass slightly
Type: Linear bass slightly
Box composition: high-strength birch plywood, black polyurea coating appearance
Frequency response:35Hz-400Hz
Sensitivity:103dB 1.0W/1m
Sound pressure level:130dB (continuous).136dB(Peak)
Nominal impedance:8 Ω
Rated power:800W
Peak power:3200W
Unit configuration:LOW:1×18"（Φ100mmImported voice coil)
Coverage angle:100°（H）×30°（V）
Product size:770(wide)×620(deep)×500highmm
Weight:43.71kg
Connecting socket:2a4Core professional slightly socket, aluminum alloy wiring board
Handle box: symmetrical left and right2Handle box
Hanging hardware: three-hanging point aluminum alloy hanging piece
Tian shaped hanger size:782(wide)×598(deep)×60(high)×30(thick)mm
LA-118/NDLinear array bass slightly
Type: Linear bass slightly
Box composition: high-strength birch plywood, black polyurea coating appearance
Frequency response:35Hz-400Hz
Sensitivity:103dB 1.0W/1m
Sound pressure level:130dB (continuous).136dB(Peak)
Nominal impedance:8 Ω
Rated power:800W
Peak power:3200W
Unit configuration:LOW:1×18"Neodymium magnetic unit (Φ100mmImported voice coil)
Coverage angle:100°（H）×30°（V）
Product size:770(wide)×620(deep)×500highmm
Weight:40.09kg
Connecting socket:2a4Core professional slightly socket, aluminum alloy wiring board
Handle box: symmetrical left and right2Handle box
Hanging hardware: three-hanging point aluminum alloy hanging piece
Tian shaped hanger size:782(wide)×598(deep)×60(high)×30(thick)mm
Linear array field type hanging rackJD-210T
Material: High-strength steel, black painted surface, safe and firm, easy to install
Tian shaped hanger size:782(wide)×598(deep)×60(high)×30(thick)mm
Accessories:1Deputy Tian Zi frame,4aUType buckle,2Gendali rope
Weight:12.91KG
