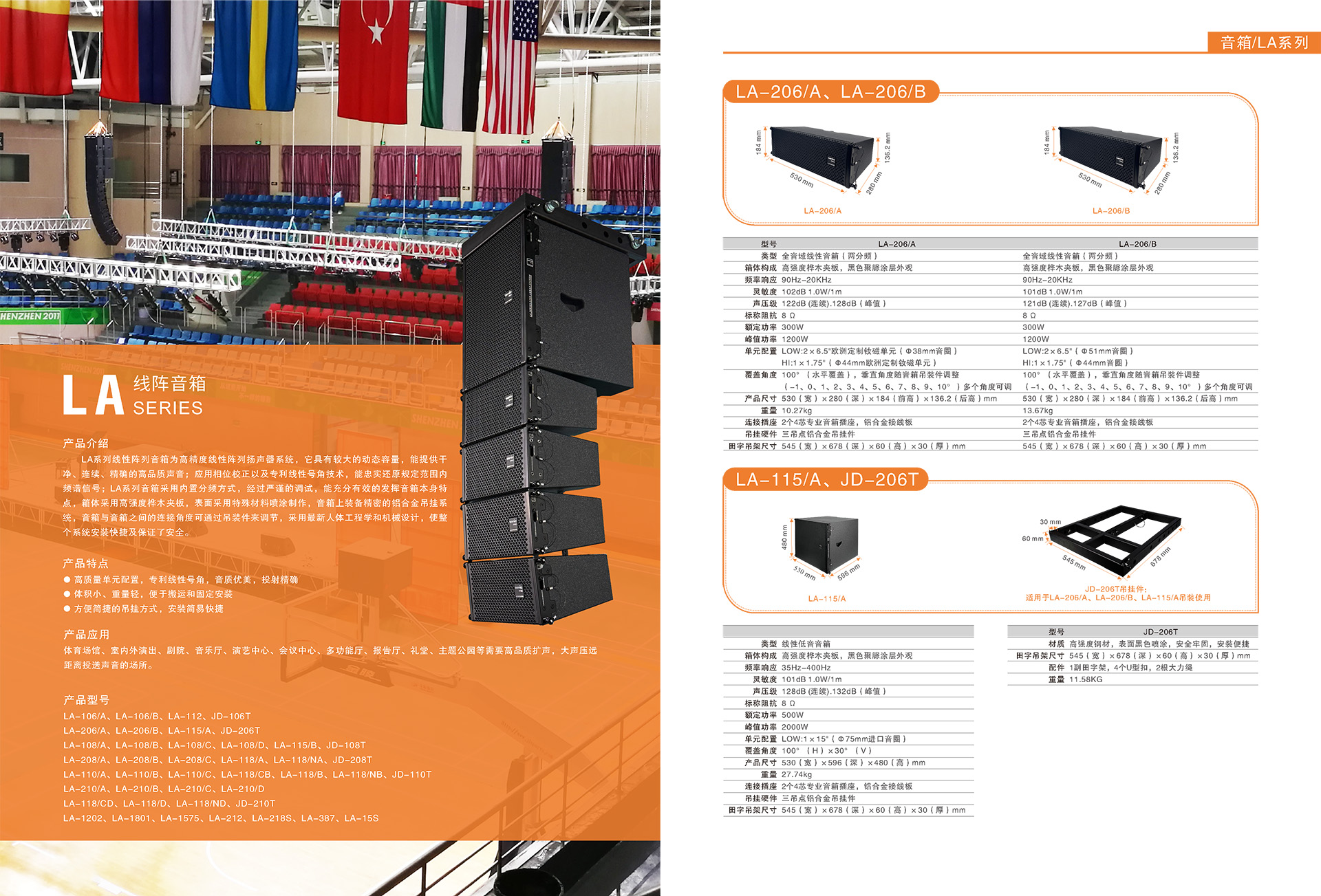

LA-206 double6.5Linear array slightly
A/B Two gear configuration gradients are optional
product introduction
LAThe series of linear array slightly is a high-precision linear array speaker system. It has a large dynamic capacity and can provide clean, continuous and accurate high-quality sound. It applies phase correction and patented linear horn technology to faithfully restore spectrum signals within the specified range;LAThe series of slightly adopts a built-in frequency division method. After rigorous debugging, it can fully and effectively utilize the characteristics of slightly itself. The box is made of high-strength birch plywood, and the surface is sprayed with special materials. The speaker is equipped with a precision aluminum alloy hanging system. The connection angle between the slightly and slightly can be adjusted through lifting parts. The latest ergonomics and mechanical design make the entire system installed quickly and ensure safety.
product features
● High-quality unit configuration, patented linear horn, beautiful sound quality, accurate projection
● Small size and light weight for easy handling and fixed installation
● Convenient and simple hanging method, easy and quick installation
product application
Sports venues, indoor and outdoor performances, theaters, concert halls, performing arts centers, conference centers, multi-purpose halls, lecture halls, auditoriums, theme parks and other places that require high-quality sound reinforcement and loud sound delivery over long distances.
LA-206/ALinear array slightly
Type: Full-range linear slightly (two-frequency)
Box composition: high-strength birch plywood, black polyurea coating appearance
Frequency response:90Hz-20KHz
Sensitivity:102dB 1.0W/1m
Sound pressure level:122dB (continuous).128dB(Peak)
Nominal impedance:8 Ω
Rated power:300W
Peak power:1200W
Unit configuration:LOW:2×6.5"European custom neodymium magnetic unit (Φ38mmvoice coil)
HI:1×1.75"（Φ44mmEuropean custom neodymium magnetic unit)
Coverage angle:100°(Horizontal coverage), the vertical angle is adjusted according to the lifting parts of the slightly,(-1、0、1、2、3、4、5、6、7、8、9、10°) Multiple angles adjustable
Product size:530(wide)×280(deep)×184former high)×136.2(Later high)mm
Weight:10.27kg
Connecting socket:2a4Core professional slightly socket, aluminum alloy wiring board
Hanging hardware: three-hanging point aluminum alloy hanging piece
Tian shaped hanger size:545(wide)×678(deep)×60(high)×30(thick)mm
LA-206/BLinear array slightly
Type: Full-range linear slightly (two-frequency)
Box composition: high-strength birch plywood, black polyurea coating appearance
Frequency response:90Hz-20KHz
Sensitivity:101dB 1.0W/1m
Sound pressure level:121dB (continuous).127dB(Peak)
Nominal impedance:8 Ω
Rated power:300W
Peak power:1200W
Unit configuration:LOW:2×6.5"（Φ51mmvoice coil)
HI:1×1.75"（Φ44mmvoice coil)
Coverage angle:100°(Horizontal coverage), the vertical angle is adjusted according to the lifting parts of the slightly,(-1、0、1、2、3、4、5、6、7、8、9、10°) Multiple angles adjustable
Product size:530(wide)×280(deep)×184former high)×136.2(Later high)mm
Weight:13.67kg
Connecting socket:2a4Core professional slightly socket, aluminum alloy wiring board
Hanging hardware: three-hanging point aluminum alloy hanging piece
Tian shaped hanger size:545(wide)×678(deep)×60(high)×30(thick)mm
LA-115/ALinear array bass slightly
Type: Linear bass slightly
Box composition: high-strength birch plywood, black polyurea coating appearance
Frequency response:35Hz-400Hz
Sensitivity:101dB 1.0W/1m
Sound pressure level:128dB (continuous).132dB(Peak)
Nominal impedance:8 Ω
Rated power:500W
Peak power:2000W
Unit configuration:LOW:1×15"（Φ75mmImported voice coil)
Coverage angle:100°（H）×30°（V）
Product size:530(wide)×596(deep)×480highmm
Weight:27.74kg
Connecting socket:2a4Core professional slightly socket, aluminum alloy wiring board
Handle box: symmetrical left and right2Handle box
Hanging hardware: three-hanging point aluminum alloy hanging piece
Tian shaped hanger size:545(wide)×678(deep)×60(high)×30(thick)mm
JD-206TLinear array field type hanging rack
Material: High-strength steel, black painted surface, safe and firm, easy to install
Tian shaped hanger size:545(wide)×678(deep)×60(high)×30(thick)mm
Accessories:1Deputy Tian Zi frame,4aUType buckle,2Gendali rope
Weight:11.58KG
