product introduction
JHThe series speaker is a medium-and long-range horn slightly specially developed for sound reinforcement in large indoor and outdoor sports venues, theme parks and other occasions. slightly adopts a special high-efficiency mid-bass unit with high-efficiency tweeter drive, installs an imported voice coil, and combines a FRP horn box structure
The full-range medium and long-distance slightly is all-weather waterproof and rainproof, and can be faithfully applied in all-weather open-air occasions.
product features
High sensitivity, high power, and excellent acoustic performance. It is specially designed for large venues and has very high reliability;
Small size, light weight, easy to hang;
The box adopts advanced integrated process and is made of special FRP materials. It has all-weather applications for moisture, mildew and rain-proof;
product application
Various competition venues such as stadiums and stadiums
Large and medium-sized theme parks, music fountains, squares
Outdoor mobile and fixed installation sound reinforcement system
Large and medium-sized indoor and outdoor gathering places

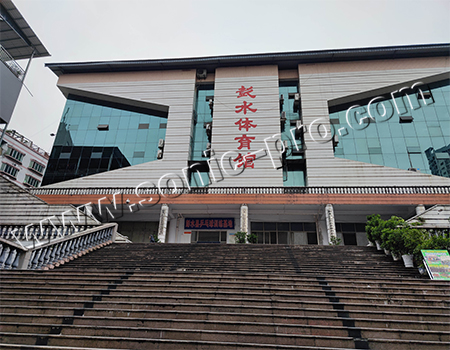

matingLEDSound reinforcement in Daping Square
Type: Remote horn slightly (two-frequency)
Frequency response:80Hz-18KHz(-3dB)
Sensitivity:107dB 1.0W/1m
Sound pressure level:133dB(continuous).139dB(Peak)
Nominal impedance:8 Ω
Rated power:500W
Peak power:2000W
Dividing point:1.7KHz
Unit configuration:LOW:1×15"(Φ75mmimported voice coil)
HI:1×1.4"(Φ75mmimported voice coil)
Coverage angle:60°(H)×40°(V)
Product size:580(wide)×770(deep)×580highmm
Weight:38.2kg
Connecting socket:2 Neutrik NL4MP
